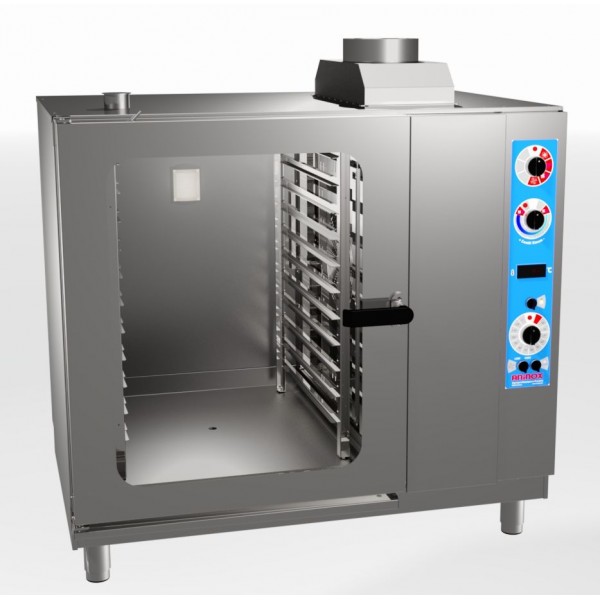

FDA-11 G/N 2/1-OIL

1) ΤYPE: FDA-11 G/N 2/1-GAS

2) CAPACITY: 11 G/N 2/1 or 22 G/N 1/1

3) FUNCTIONAL ROASTING CHARACTERISTICS

• Hot air 30-270 ° C, CONVECTION
• Steam 30-118 °, STEAM
• Humidity 30-270 ° C with variable quota of humidity, COMBINATION
• Chamber cold
• Optional trimmer mounted on the roof of the cabin for semi-automatic washing

SPECIFICATIONS:

• Manual lectromechanical panel
• Program selector
• Power switch for humidification
• Porcelain thermostat 30-270 ° C
• Porcelain steam thermostat 30-118 ° C, with automatic reset reset
• 2 hour timer
• Low -high motor  speed switch (900-1400rpm)
• Lighting button
• Semi-automatic wash buttons (optional)
• Method of steam and humidification by spraying
• Electrical power 0,55KW
• Burner RIELLO 40 G 3X
• Nozzle 0,5 GPH
• Oil supply 2 Kg/h ± 4%
• Thermal power 19.350 Kcal/h
• One motor  3/4 Hp, 900-1400 rpm, with thermal protection (thermistors) - one impeller Φ350 X 100mm, 18 blades 90mm wide electromagnetic door sensor
• Water supply 3 / 4 ΄΄ (minimum pressure 2 bar)
• Diameter 40mm drainage
• Removing grilles and bulkhead with a simple lift
• Closed type fan-chamber diaphragm for targeted hot air outlet in the chamber
• 4 adjustable diaphragm type dampers for regulating hot air flow in the chamber (right - left and up - down)
• Double latch door lock
• Silk cabling
• 1 metal centrifugal fan for cooling in relay motors
• Wool insulation with aluminum coating 60Kgr / m3 - ceramic wool
• Trap-trapped insulation with metal laminate exterior
• Chamber material inox, 1,5mm, 18 / 10 Din-304 Aisi  mirror type, with 60mm curves for easy cleaning
• Adjustable 2 '' stainless steel footwear with a travel width of 50mm
• Dimensions 122x85xh114cm
• Origin Greek
